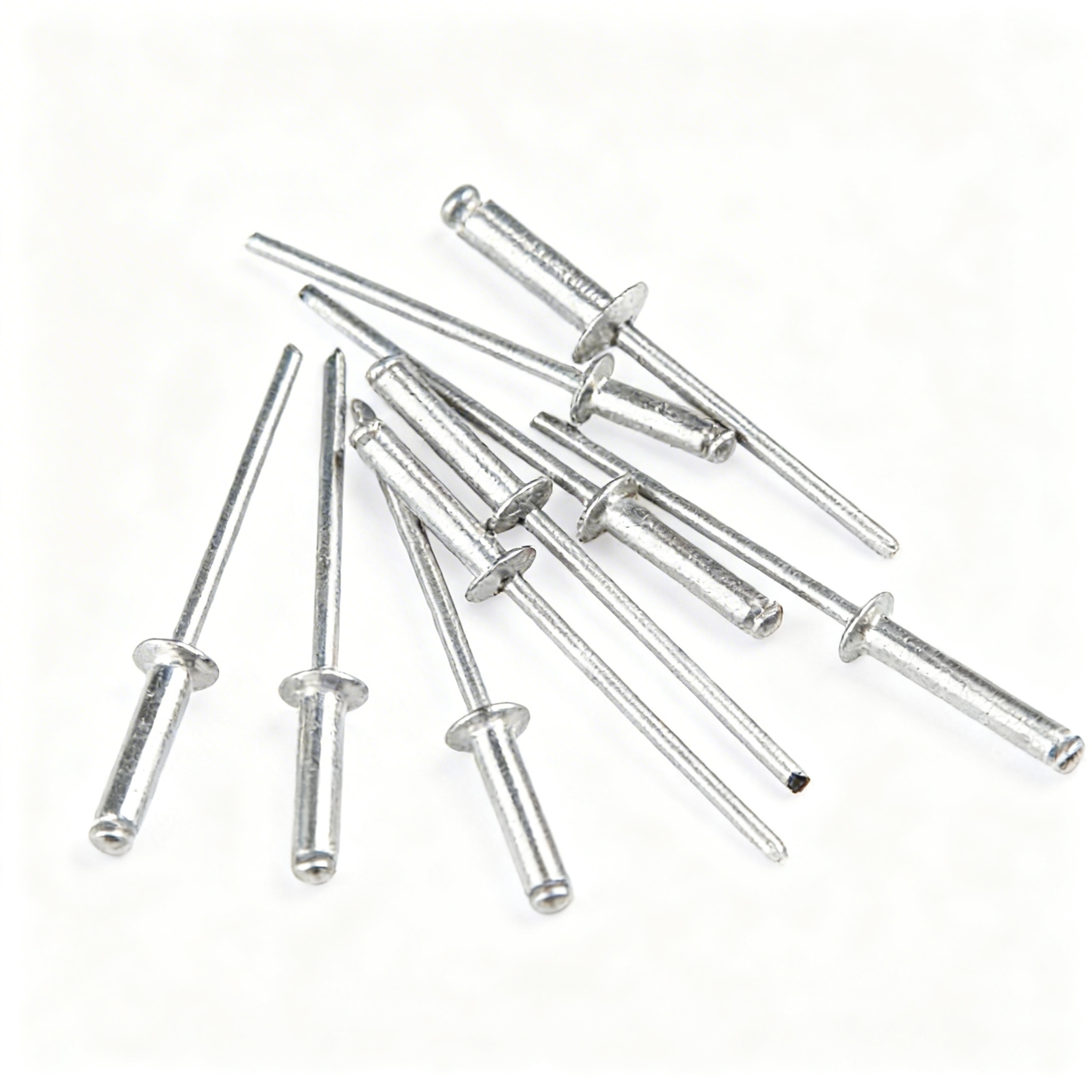

Open End Blind Rivet
Product Code: RV-OE-ALU
High-quality open end blind rivets (pop rivets) designed for fast, reliable fastening from one side of the workpiece. These versatile fasteners are ideal for sheet metal, plastics, and composite materials.
Available in various material combinations including aluminum body with steel mandrel, all-aluminum, and stainless steel for different application requirements.
| Body Material | Aluminum / Steel / Stainless Steel |
|---|---|
| Mandrel Material | Steel / Stainless Steel / Aluminum |
| Standard | DIN 7337 / ISO 15977 |
| Diameter Range | 2.4mm to 6.4mm (3/32" to 1/4") |
| Grip Range | 0.5mm to 25mm |
| Head Styles | Dome / Countersunk / Large Flange |
| Shear Strength | Up to 4,000 N (size dependent) |
| Packaging | 500 pcs/box or bulk |
Key Features
One-Side Access
Install from single side without rear access
Quick Installation
Fast setting with manual or pneumatic tools
Vibration Resistant
Permanent fastening that won't loosen
Versatile Materials
Suitable for metal, plastic, and composites
Multiple Sizes
Wide range of diameters and grip ranges
Cost Effective
Economical solution for high-volume assembly
Applications
Sheet metal fabrication
HVAC ductwork
Automotive trim and panels
Electrical enclosures
Signage and displays
Appliance manufacturing
Furniture assembly
General construction
