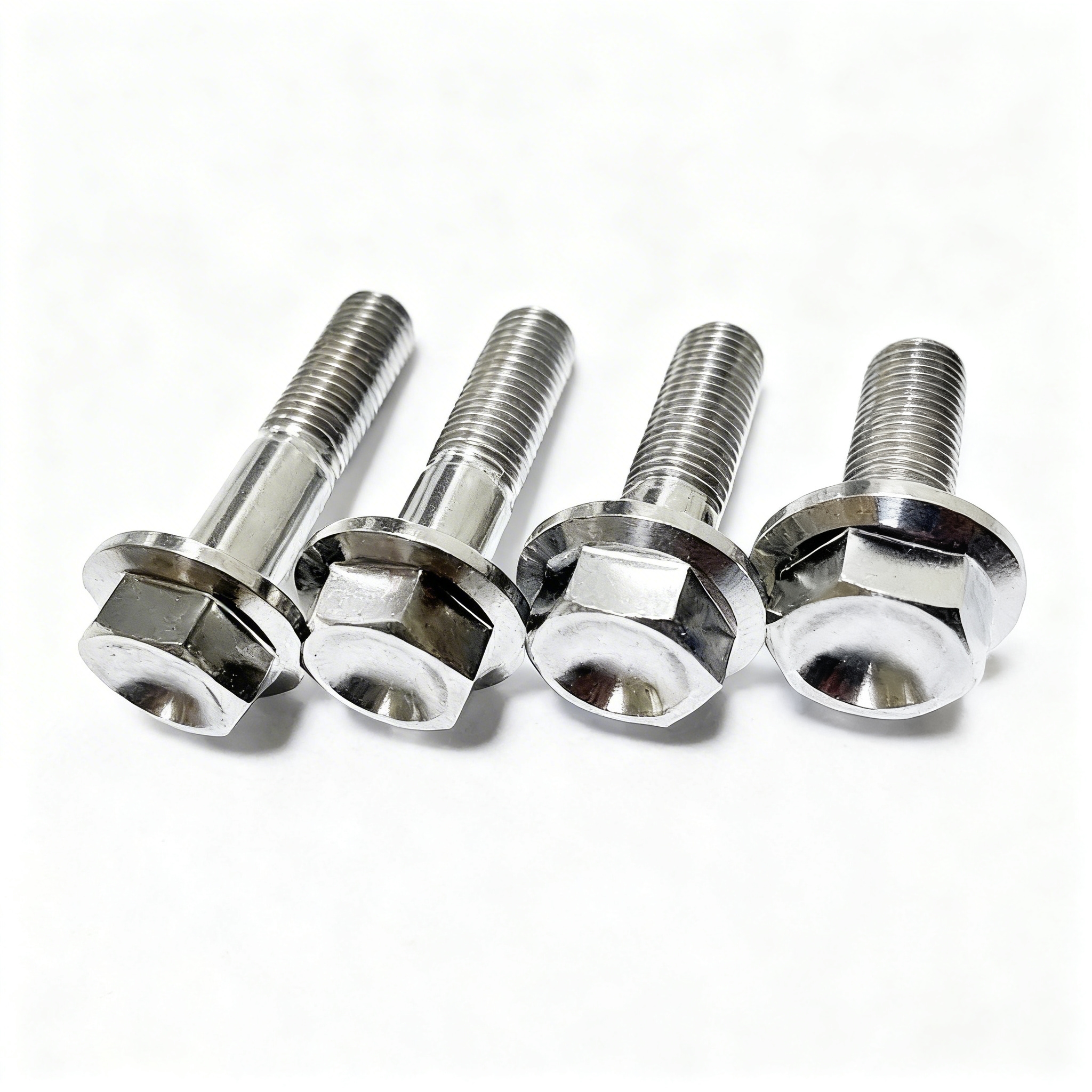

Titanium Alloy Screw Grade 5
Product Code: TI-SC-GR5
Aerospace-grade Ti-6Al-4V (Grade 5) titanium screws offering the ultimate combination of strength, light weight, and corrosion resistance. These screws are 40% lighter than steel while providing comparable strength.
Ideal for aerospace, racing, marine, and high-performance applications where every gram matters and failure is not an option.
| Material Grade | Ti-6Al-4V (Grade 5) / Ti-6Al-4V ELI (Grade 23) |
|---|---|
| Standard | AMS 4928 / ASTM F136 |
| Size Range | M3 to M12 |
| Tensile Strength | 900-1100 MPa |
| Density | 4.43 g/cm³ (40% lighter than steel) |
| Hardness | HRC 30-36 |
| Temp Range | -253°C to 600°C |
| Finish | Pickled / Polished / Anodized |
Key Features
Ultra Lightweight
40% lighter than steel screws for weight-critical applications
High Strength
Tensile strength of 900+ MPa comparable to alloy steel
Corrosion Proof
Exceptional resistance to saltwater and chemicals
Non-Magnetic
Perfect for MRI equipment and sensitive electronics
Biocompatible
Safe for medical implants and surgical instruments
Heat Resistant
Maintains strength at temperatures up to 600°C
Applications
Aerospace structures and engines
Racing and high-performance vehicles
Medical implants and instruments
Marine and offshore equipment
Chemical processing plants
Motorcycle and bicycle components
Premium consumer electronics
Sports equipment
